High-Speed Induction Preheating Machine For Cable Manufacturing

Brand Name : Wirecan

Model Number : wrk-150

Certification : ISO

Place of Origin : china

MOQ : 1set

Price : By negotiation

Payment Terms : L/C, T/T

Supply Ability : Up to different machine

Delivery Time : Min.30working days

Packaging Details : Plastic film+wooden box

Interface Type : FC

Tension Times : 0~9999

Warranty : 1 year

Maximum Working Pressure : 4MP/cm2

Display : LED

Electrode : 200mm*300mm

Keyword : HV Resonance Test System

Suitable Material : Copper

Usage : test flexing capability of cables

Power Supply : 380V/50Hz

Keyward : EN50339 Bunched Cable Tester

Quality : High Performance

Drive Type : Manual

Pendulum Length : 1000mm

Contact Now

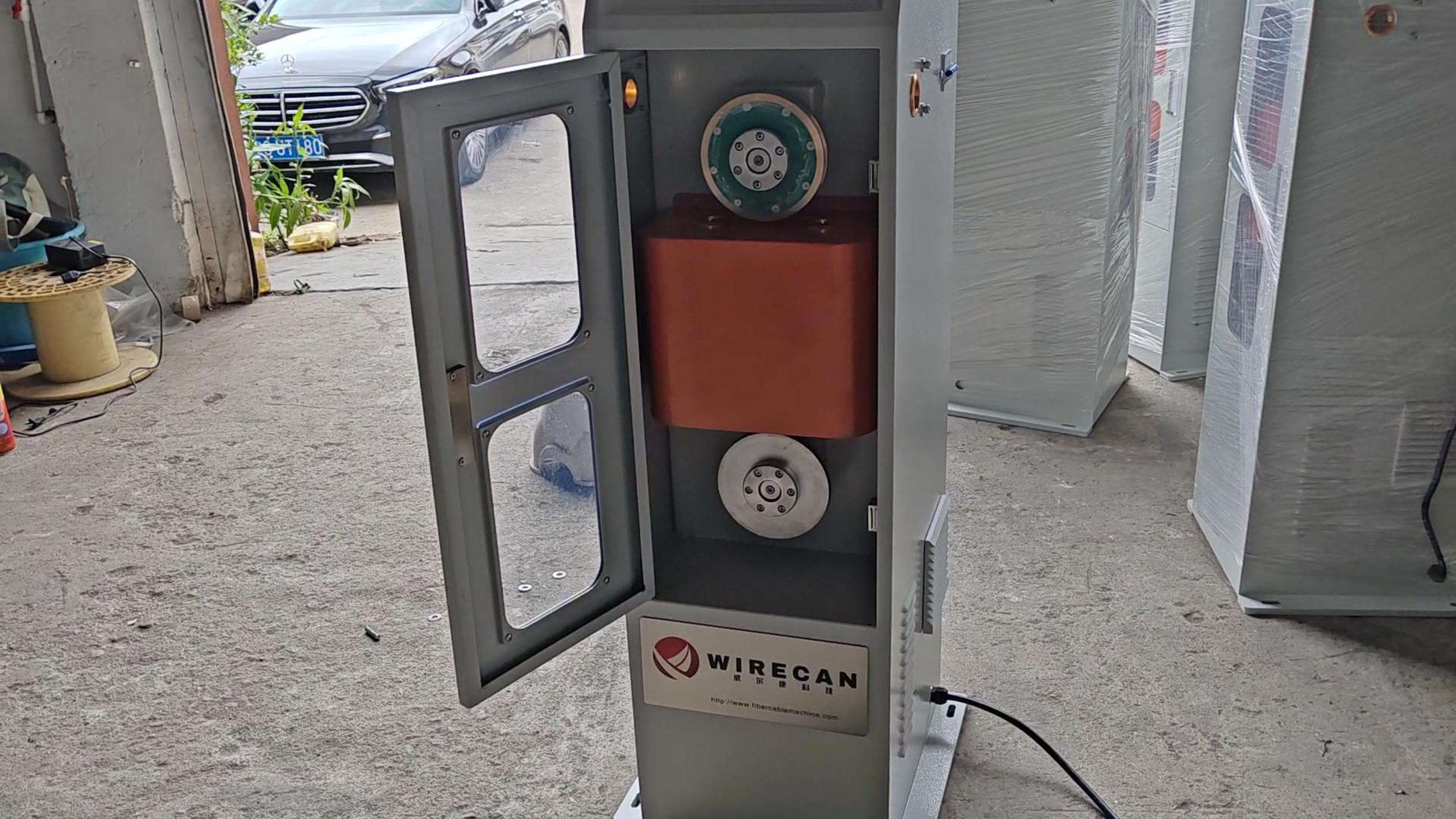

The TS-150 High Frequency Induction Preheater by Dongguan Wirecan is a high-efficiency preheating solution designed for copper, aluminum, and alloy wires.

It uses advanced high-frequency induction technology to ensure uniform wire heating before extrusion, significantly improving the adhesion of insulation layers and enhancing cable quality. This preheater is ideal for use in high-speed extrusion lines in wire and cable manufacturing.

High-Speed Induction Preheating Machine For Cable Manufacturing

Key Features:

  1. High-Frequency Induction Heating: Frequency up to 4.5 kHz for even and efficient wire heating.

  2. Speed Tracking System: Automatically adjusts power based on line speed to maintain consistent temperature.

  3. Automatic Temperature Calibration: Select wire specifications to ensure accurate heating temperature.

  4. Temperature Compensation Function: Adapts to room temperature changes to maintain heating precision.

  5. User-Friendly HMI: Simple and intuitive touch screen interface for easy operation.

  6. RS-485 Communication (Optional): Supports remote control and integration with production lines.

  7. Stable Power Supply: 380V, three-phase, 50/60Hz compatible.

  8. Energy Efficient: Preheats uniformly at high speeds, optimizing energy use and reducing waste.

  9. OEM & ODM Support: Wirecan provides customization support tailored to project needs.

  10. Compact & Robust Design: Suitable for continuous production environments.

Technical Parameters:

Parameter Specification
Model TS-150
Applicable Materials Copper, Aluminum
Capstan Diameter 148 mm
Wire Diameter Range 0.25 - 1.0mm
Linear Speed 0 - 1000 m/min
Preheating Temperature Room Temp. - 300°C
Inlet/Outlet Line Height 1000 mm
Power Supply 380V / 50-60Hz / Three-phase five-wire
Max Power Consumption 6 kW
Communication Interface RS-485 (Optional)
